A flexible folding fixture designed to have all of the power with none of the weight. With a velcro to attach it to any surface, the Wing is perfect for the most demanding of situations, Easily scalable, making large overhead light sources is now a piece of cake. Flicker-free up to 3000 fps and beyond.

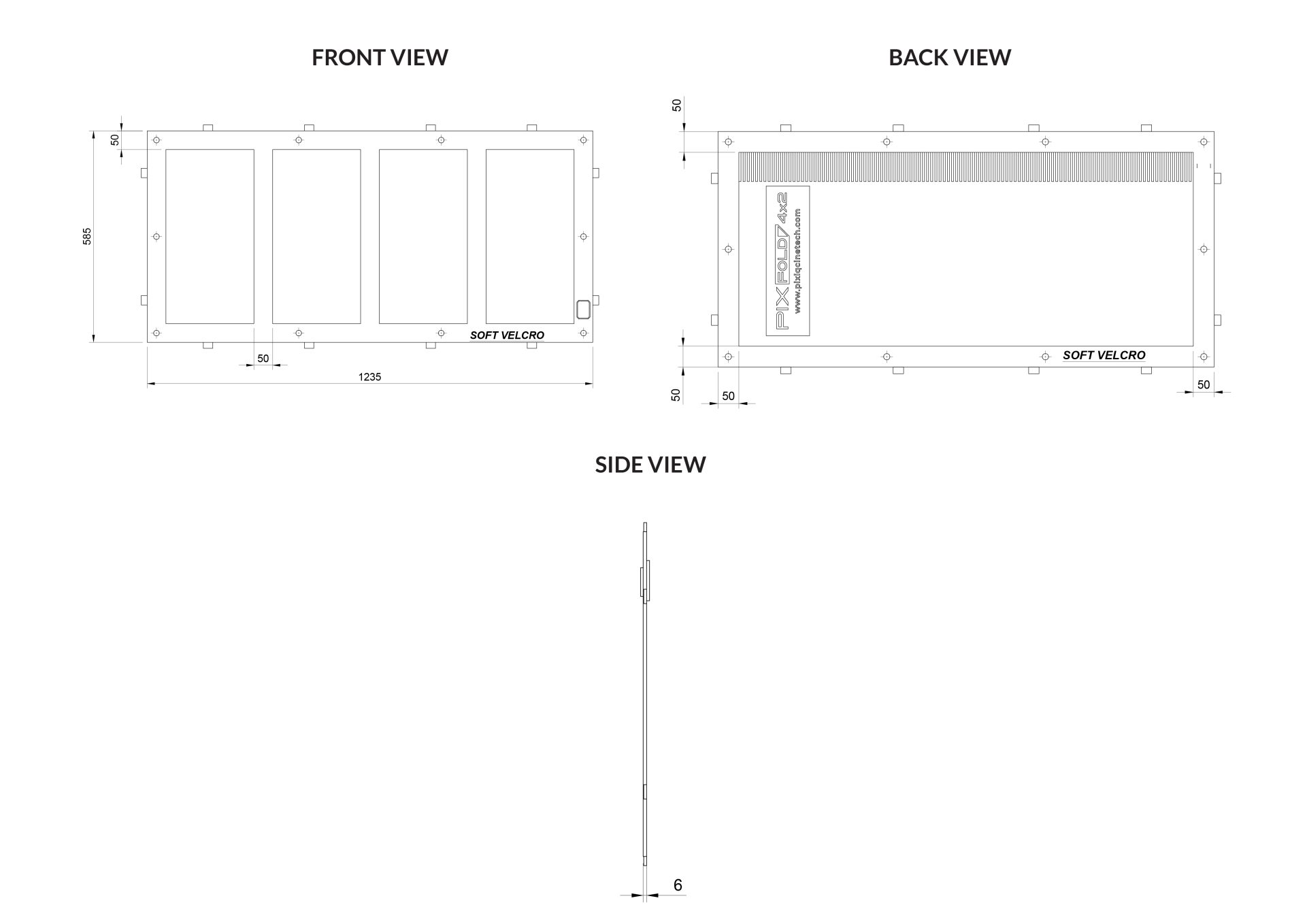

| Product | Pixfold 4x2 |
|---|---|
| Power | 250W Max |
| Voltage | 48V |
| Current | 5A max |
| LEDs | Red, Green, Blue, Warm White, Cool White |
| CCT Range | 2600K - 15000K |
| CRI | 95+ |
| Controller Hub | Pixfold 500 and Pixfold 1000 |
| Power Connector | CN-Linko LP-20-12 |
| Dimming Range | 0 - 100% |
| Rigging options | Eyelets, Velcro, X-Frame Mount, Box Frame |
| Structure | Foldable Cloth Mat with Velcro |
| Weight | 1.7Kg |
| Dimensions | 1235mm x 585mm x 6mm |
| Max Ambient Temp | 40 degrees C |
| Max Case Temp | 70 degrees C |
A lightweight folding fixture designed to have all of the power and none of the weight. Its flexibility combined with lightweight and velcro allows it to be used in the most demanding of situations. Easily scalable, making large overhead light sources is now a piece of cake. Flicker free up to 3000 fps and beyond.
| Product | Pixfold 8x2 |
|---|---|
| Power | 500W Nominal |
| Voltage | 48V |
| Current | 10A max |
| LEDs | Red, Green, Blue, Warm White, Cool White |
| CCT Range | 2600K - 15000K |
| CRI | 95+ |
| Controller Hub | Pixfold 500 and Pixfold 1000 |
| Power Connector | CN-Linko LP-20-12 |
| Dimming Range | 0 - 100% |
| Rigging options | Eyelets, Velcro, Box Frame |
| Structure | Foldable Cloth Mat with Velcro |
| Weight | 3.3Kg |
| Dimensions | 2405mm x 585mm x 6mm |
| Max Ambient Temp | 40 degrees C |
| Max Case Temp | 70 degrees C |
These hubs will remind you that size does matter. Built for scaling up your source, the hubs are capable of powering multiple lights at once.
It is built on a poka-yoke concept and is impossible to cause damage if lights are interchanged. A single hub to power multiple lights of different sizes at the same time! It comes with our universal UI system, it’s as easy to use as can be.
| Product | PixHub 1000 |
|---|---|
| Input Power | 1000W max |
| Input Voltage | 110-230VAC |
| Input Current | 5-11A AC |
| Output Voltage | 48-60Vdc |
| Output Current | 20A max |
| Output Connector | 2x CN-Linko LP-20-12 |
| Weight | 5.3kg |
| Light Modes | HSI, CCT, RGB, GELS, Effects, X-Y |
| Control Modes | BLE-Mesh, Manual, DMX |
| Wired DMX | 5 pin XLR |
| Wireless BLE-Mesh | Pixiq App |
| Max Ambient Temp | 40 degrees C |
| Max Case Temp | 70 degrees C |
These hubs will remind you that size does matter. Built for scaling up your source, both the hubs are capable of powering multiple lights at once. It is built on a poka-yoke concept and is impossible to cause damage if lights are interchanged. A single hub to power multiple lights of different sizes at the same time! Baked in with our universal UI system it’s as easy to use as can be.

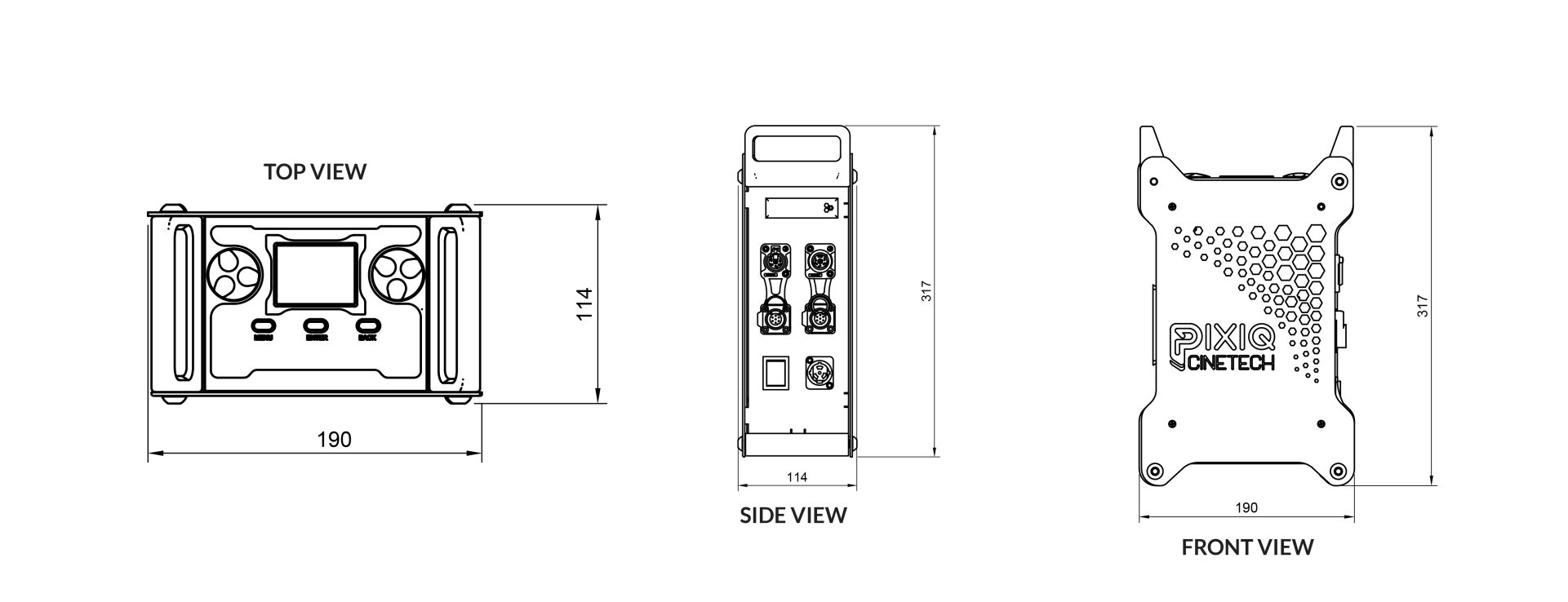

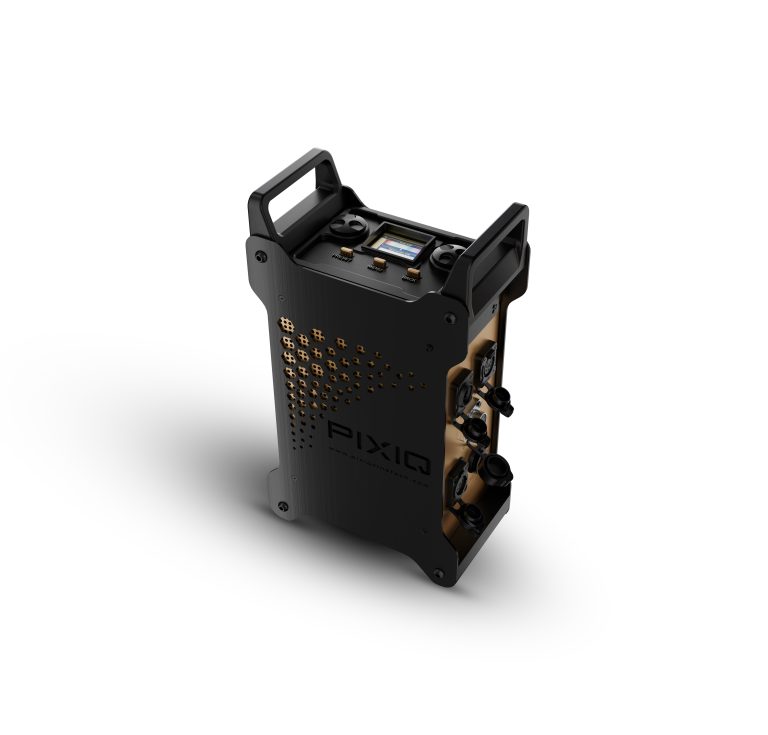

| Product | PixHub 500 |
|---|---|
| Input Power | 500W max |
| Input Voltage | 110-230VAC |
| Input Current | 3-6A AC |
| Output Voltage | 48-60Vdc |
| Output Current | 10A max |
| Output Connector | 2x CN-Linko LP-20-12 |
| Weight | 3.4kg |
| Light Modes | HSI, CCT, RGB, GELS, Effects, X-Y |
| Control Modes | BLE-Mesh, Manual, DMX |
| Wired DMX | 5 pin XLR |
| Wireless BLE-Mesh | Pixiq App |
| Max Ambient Temp | 40 degrees C |
| Max Case Temp | 70 degrees C |
