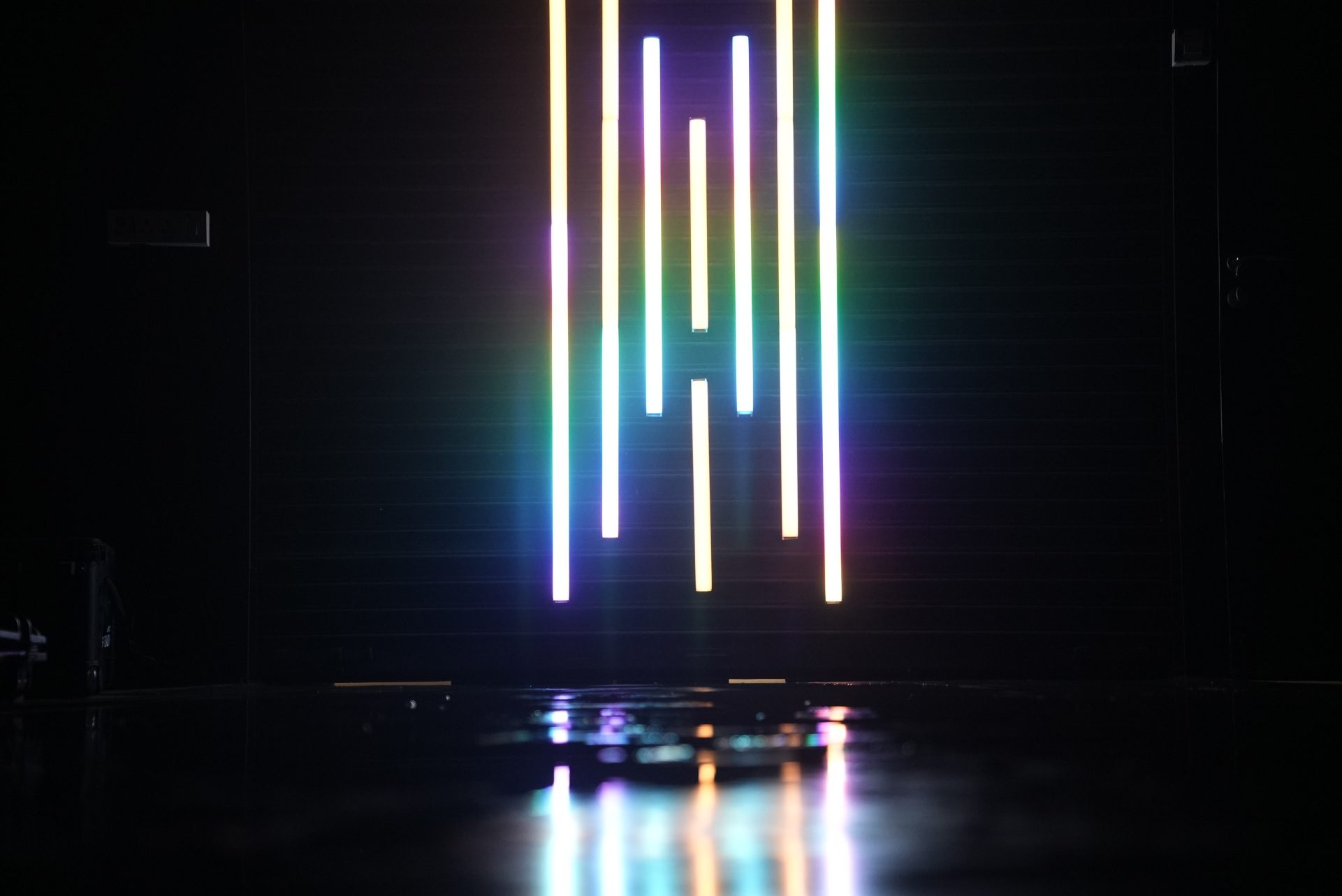

The Phantom LED tubes connect seamlessly, letting lighting artists draw with light on set. With no bezels, shapes remain fluid and uninterrupted. Each 42mm x 1050mm tube features a high pixel density, delivering ~42x42mm square pixels for distortion-free visuals and smooth gradients. The clamp design avoids diffuser interference, ensuring pure diffusion. Available in two models – Phantom 4 and Phantom 2 – Phantom is the essential tool for visual storytelling through light.

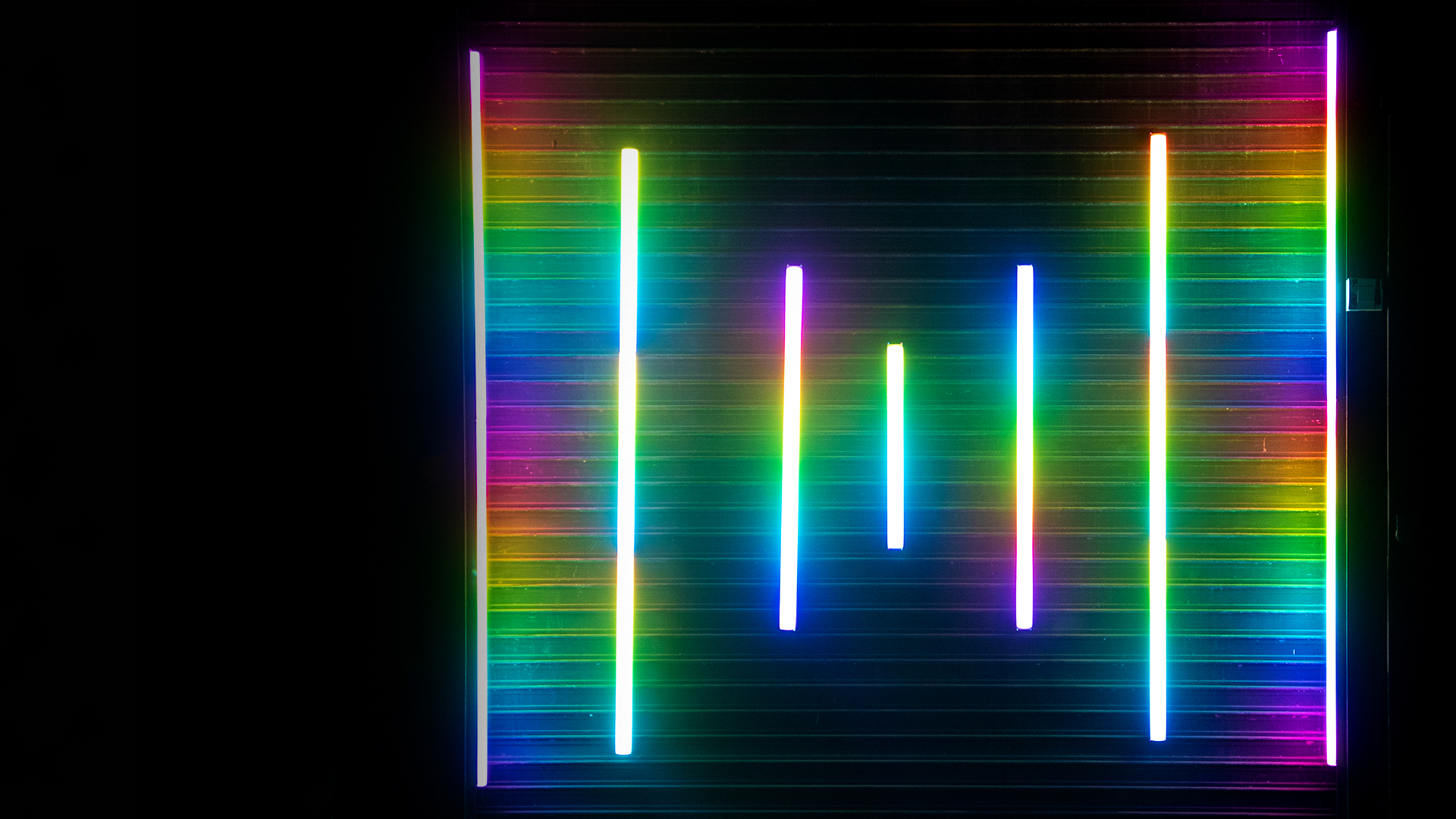

The LED tubes are designed to make connecting lights flexible to meet the most creative needs of events and film sets. The tubes have no bezels which also makes the shapes seamless.
The end caps’ mechanical design ensures the tubes connect seamlessly, leaving only the light visible as the tube body remains a Phantom.

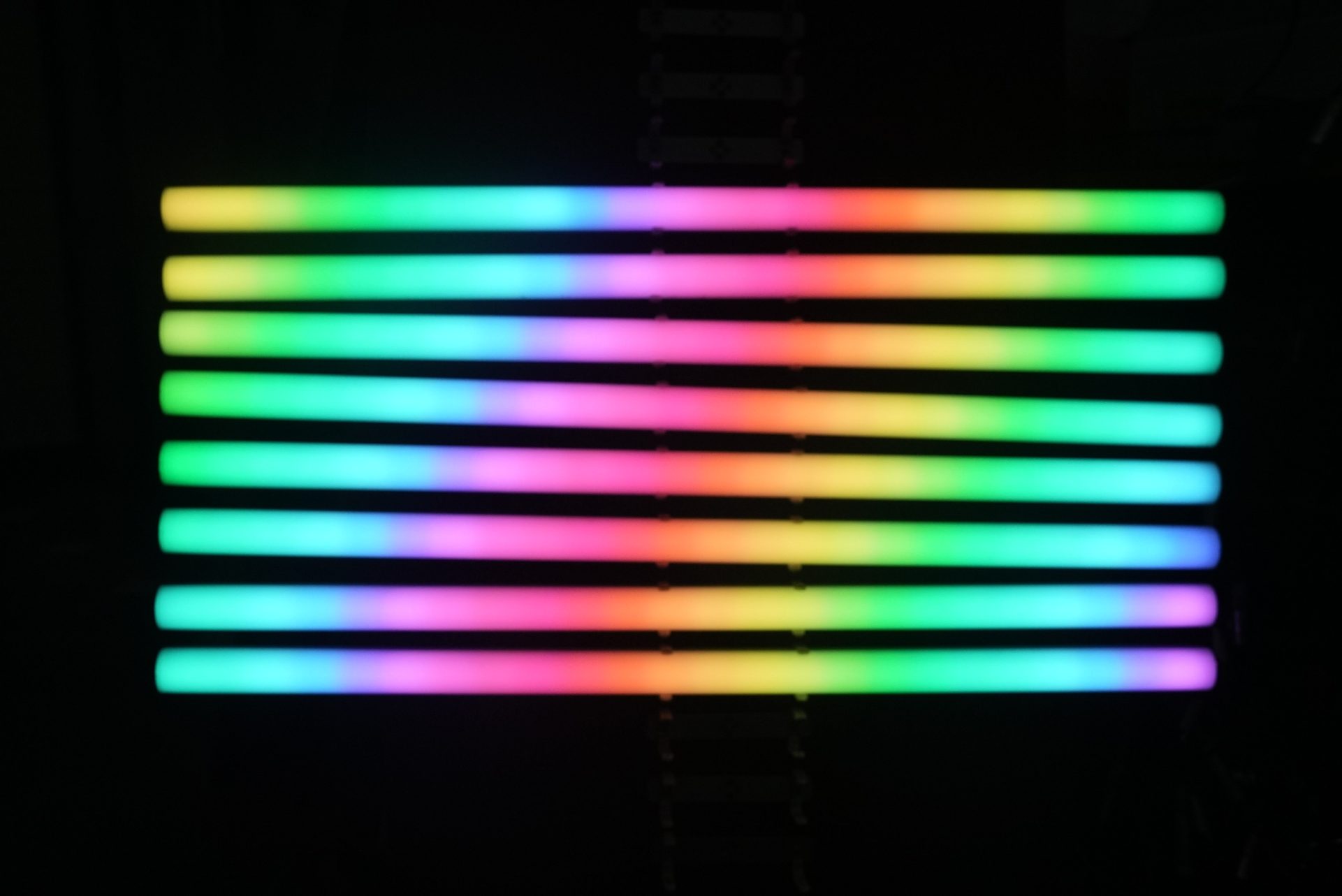

Our tubes have a higher-than-average pixel density relative to comparable products. With the dimensions of the tube (42mm by 1050mm), each pixel forms a perfect square (~42x42mm). This ensures videos and images look proportional with reduced distortion. The higher pixel count also means that colour gradients, visual transitions, and effects are smooth.

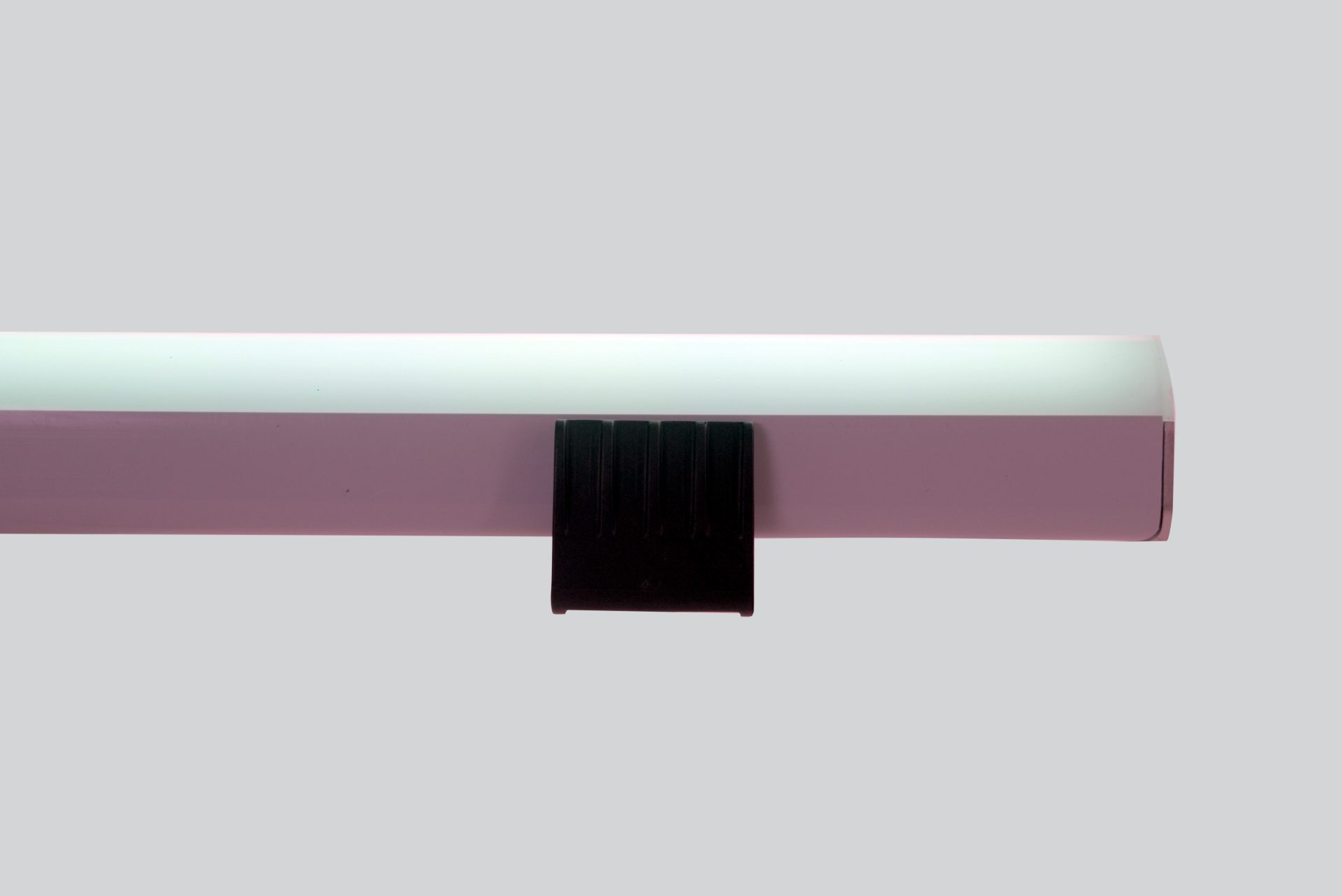

The clamp on the lights does not interfere with the diffuser giving you uninterrupted diffused lighting.
Phantom 4 tubes deliver powerful, consistent illumination ideal for film and television lighting. These lightweight,
high-efficiency LED tubes offer full-spectrum color accuracy, dimming control, and robust build quality. Designed for versatility, they seamlessly integrate into professional lighting setups, enhancing creative flexibility on set or on location.
| Product | Phantom 4 | Phantom 2 |
|---|---|---|
| Output Power | 45W nominal (48W max) | 22.5W nominal (24W max) |
| Input Power | 60W (with battery charging) | 30W (with battery charging) |
| Input Voltage | 24V | |
| Input Current | 2.5A | |
| LEDs | Red, Green, Blue, Warm White, Cool White | |
| CCT Range | 1800K - 20000K | |
| CRI | 95+ | |
| Light Modes | HSI, CCT, RGB, GELS, Effects, X-Y | |
| Control Modes | App, Manual, DMX | |
| 5600K lux @ 3m | ||
| 3200K lux @ 3m | ||
| Power Connector | Barrel Jack 5.5mm x 2.1mm | |
| Pixels | 24 square pixels | 12 square pixels |
| Battery | 11.1V 10,500mAh (116Wh) | 11.1V 3,300mAh (39Wh) |
| Charge Time | 3.5 hours | 2.5 hours |

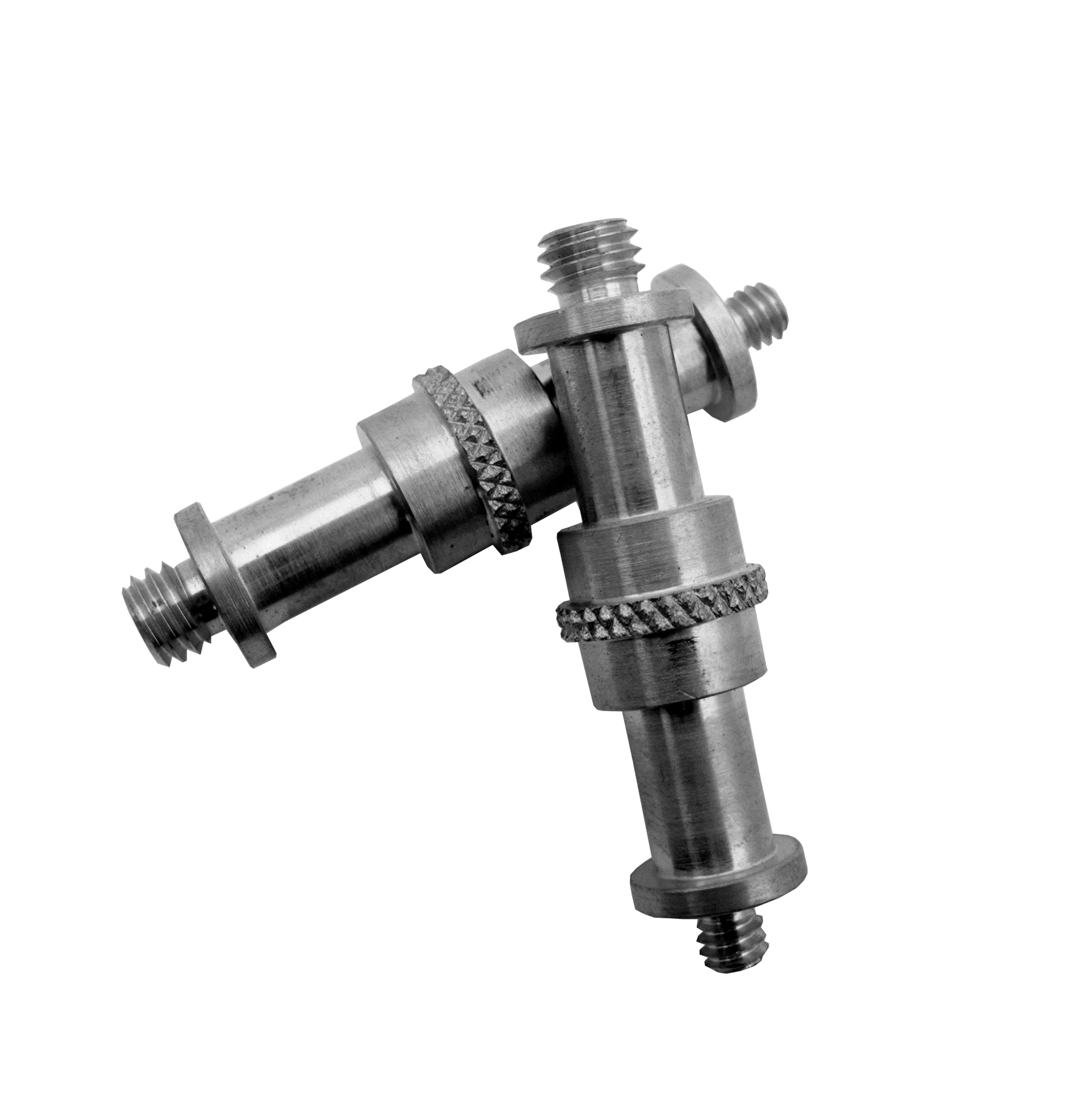

| Rigging options | BSW threads, clamps | |
| Mount | Snap Clamps, Spring Clamps, Magnets Incl. in kit | |
| Structure | Aluminium extrusion with Polycarbonate housing | |
| Weight | 1.75kg | 850g |

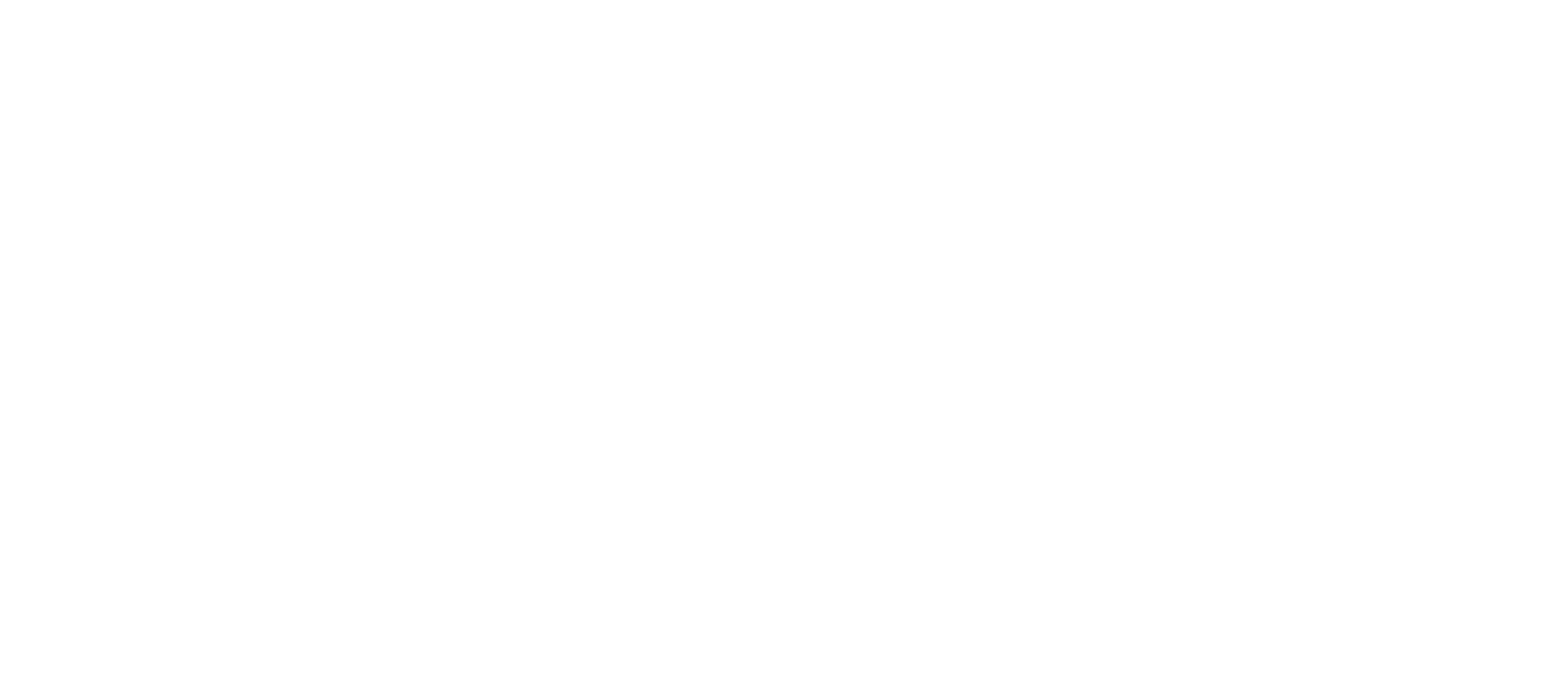

| Dimensions | 1020mm by 40mm by 41mm | 560mm by 40mm by 41mm |
| Water/Dust rating | IP65 | |
| Max Ambient Temp | 40 degrees C | |
| Max Case Temp | 70 degrees C | |
| Max Brightness Runtime | 2 hours | 1h 25 mins |
Phantom 4 tubes deliver powerful, consistent illumination ideal for film and television lighting.
Phantom 4 tubes deliver powerful, consistent illumination ideal for film and television lighting. These lightweight,
high-efficiency LED tubes offer full-spectrum color accuracy, dimming control, and robust build quality. Designed for versatility, they seamlessly integrate into professional lighting setups, enhancing creative flexibility on set or on location.
| Product | Phantom 4 | Phantom 2 |
|---|---|---|
| Output Power | 45W nominal (48W max) | 22.5W nominal (24W max) |
| Input Power | 60W (with battery charging) | 30W (with battery charging) |
| Input Voltage | 24V | |
| Input Current | 2.5A | |
| LEDs | Red, Green, Blue, Warm White, Cool White | |
| CCT Range | 1800K - 20000K | |
| CRI | 95+ | |
| Light Modes | HSI, CCT, RGB, GELS, Effects, X-Y | |
| Control Modes | App, Manual, DMX | |
| 5600K lux @ 3m | ||
| 3200K lux @ 3m | ||
| Power Connector | Barrel Jack 5.5mm x 2.1mm | |
| Pixels | 24 square pixels | 12 square pixels |
| Battery | 11.1V 10,500mAh (116Wh) | 11.1V 3,300mAh (39Wh) |
| Charge Time | 3.5 hours | 2.5 hours |
| Rigging options | BSW threads, clamps | |
| Mount | Snap Clamps, Spring Clamps, Magnets Incl. in kit | |
| Structure | Aluminium extrusion with Polycarbonate housing | |
| Weight | 1.75kg | 850g |
| Dimensions | 1020mm by 40mm by 41mm | 560mm by 40mm by 41mm |
| Water/Dust rating | IP65 | |
| Max Ambient Temp | 40 degrees C | |
| Max Case Temp | 70 degrees C | |
| Max Brightness Runtime | 2 hours | 1h 25 mins |

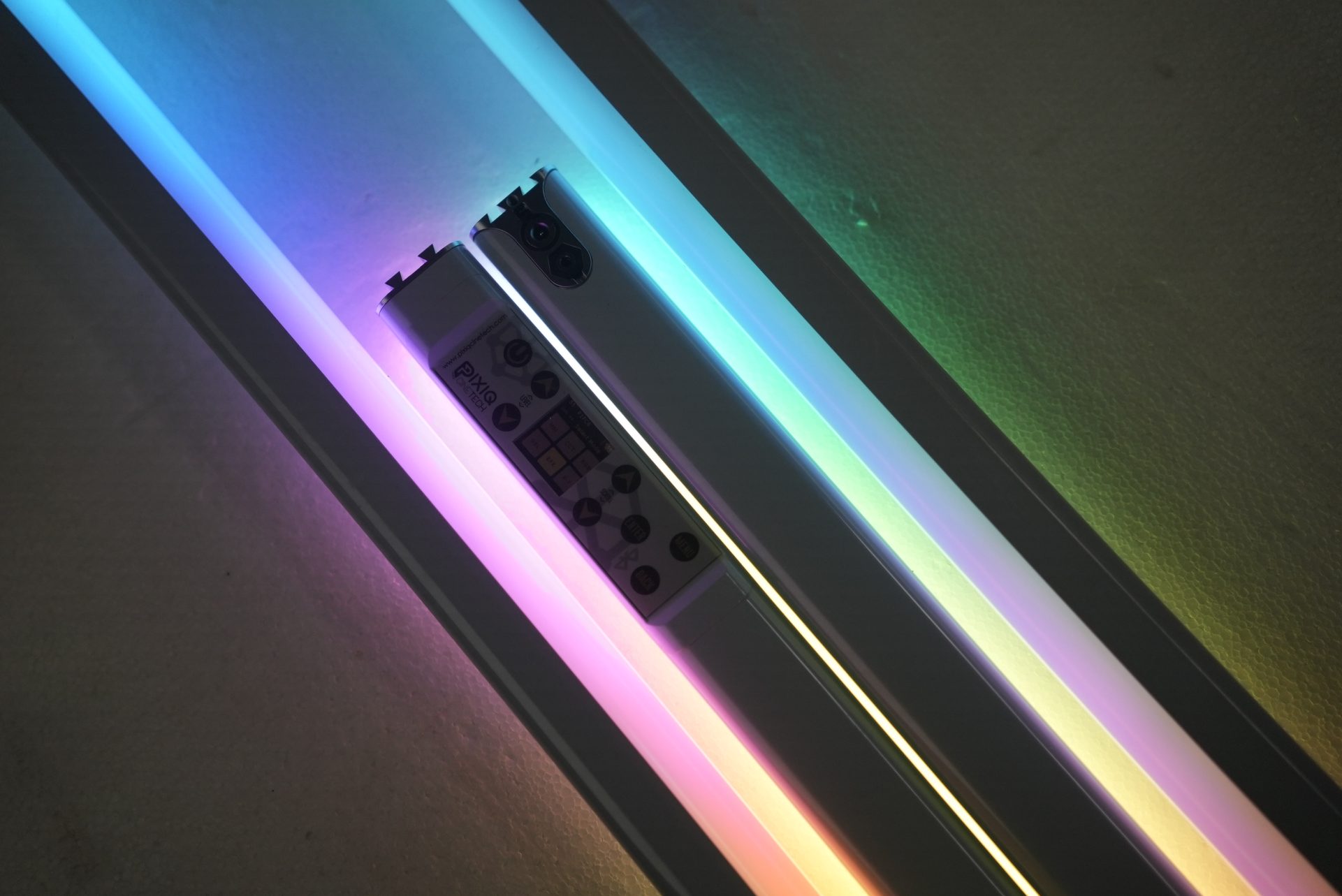

Phantom 2 delivers powerful, reliable, and color-accurate lighting for film and television.
Phantom 2 tubes provide powerful, consistent illumination with exceptional color accuracy, ideal for film and television lighting. Designed for professionals, they deliver flicker-free, high-output light, ensuring optimal performance on set. Lightweight, durable, and versatile, Phantom 2 tubes meet the rigorous demands of cinematic productions.
| Product | Phantom 2 |
|---|---|
| Output Power | 22.5W nominal (24W max) |
| Input Power | 30W (with battery charging) |
| Input Voltage | 24V |
| Input Current | 1.25A |
| LEDs | Red, Green, Blue, Warm White, Cool White |
| CCT Range | 1800K - 20000K |
| CRI | 95+ |
| Light Modes | HSI, CCT, RGB, GELS, Effects, X-Y |
| Control Modes | App, Manual, DMX |
| 5600K lux @ 3m | |
| 3200K lux @ 3m | |
| Power Connector | Barrel Jack 5.5mm x 2.1mm |
| Pixels | 12 square pixels |
| Battery | 11.1V 3,300mAh (39Wh) |
| Charge Time | 2.5 hours |
| Rigging options | BSW threads, clamps |
| Mount | Snap Clamps, Spring Clamps, Magnets Incl. in kitSnap Clamps, Spring Clamps, Magnets Incl. in kit |
| Structure | Aluminium extrusion with Polycarbonate housingt |
| Weight | 850gt |

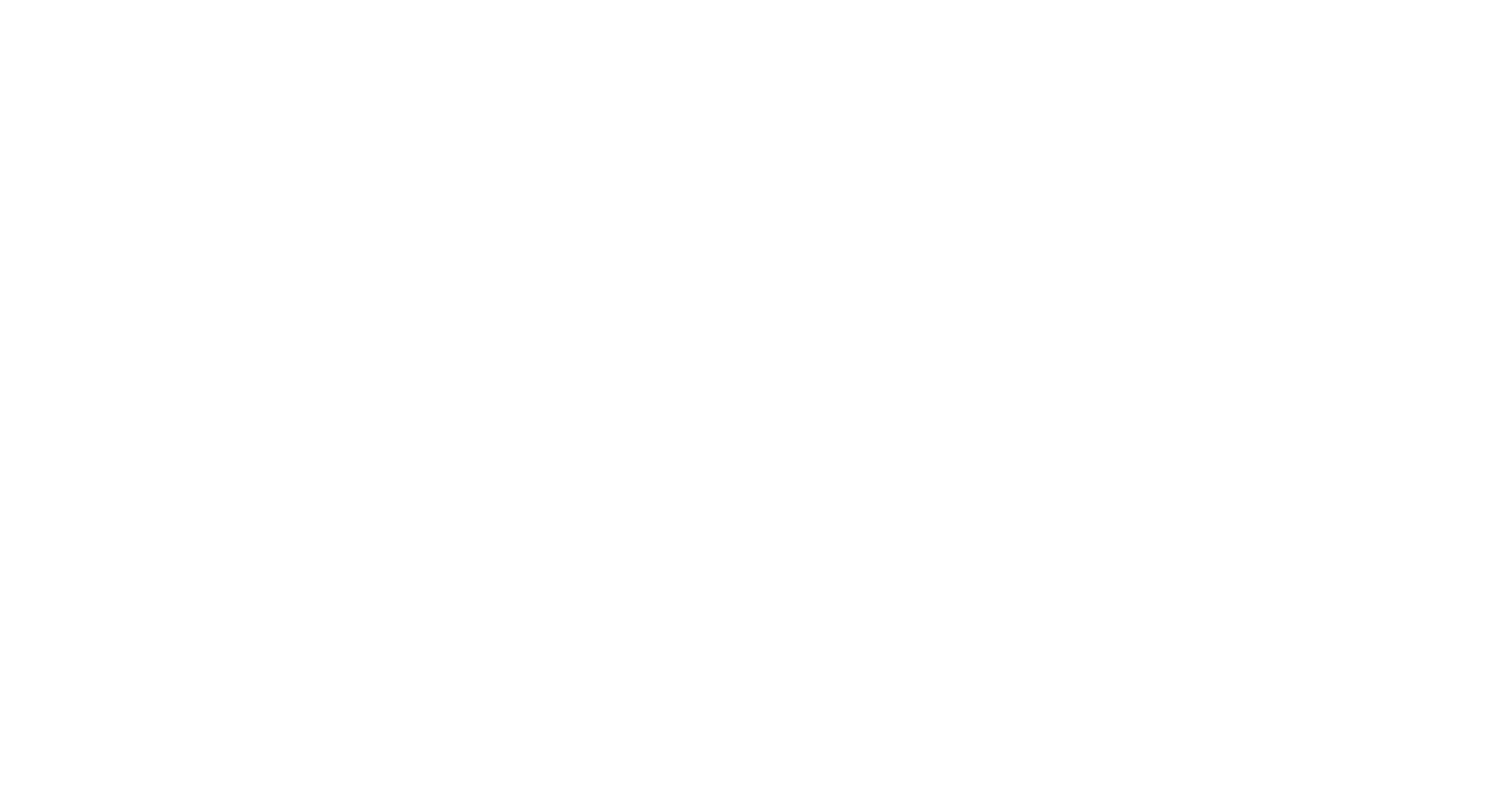

| Dimensions | 560mm by 40mm by 41mm |
| Water/Dust rating | IP65 |
| Max Ambient Temp | 40 degrees C |
| Max Case Temp | 70 degrees C |
| Max Brightness Runtime | 1h 25 mins |
Smart Charger ensures fast, safe, and efficient charging for all your essential devices.
The Smart Charger delivers fast, efficient, and reliable power for all your devices. Designed with intelligent technology, it automatically detects and adjusts to optimal charging needs. Compact and durable, it offers enhanced safety features to protect against overcharging, overheating, and short circuits – perfect for everyday use.
| Product | Phantom Smart Charger |
|---|---|
| Output Power | 480W |
| Input Power | 500W |
| Input Voltage | 110-220VAC |
| Input Current | 3-6A |
| DMX | 8 output ports for Phantom tubes |
| Charging | 8 protected ports for charging the tubes |
| Rigging options | V lock mount (optional: superclamp with v lock mount) |
| Wireless | Built-in Lumen Radio TimoTwo transceiver |
| Dimensions |
The smart charger does signal splitting with one unit capable of charging 8 tubes. It has a built-in lumen radio transmitter to which any lumen radio light can connect.
| Product | Phantom Smart Charger |
|---|---|
| Output Power | 480W |
| Input Power | 500W |
| Input Voltage | 110-220VAC |
| Input Current | 3-6A |
| DMX | 8 output ports for Phantom tubes |
| Charging | 8 protected ports for charging the tubes |
| Rigging options | V lock mount (optional: superclamp with v lock mount) |
| Wireless | Built-in Lumen Radio TimoTwo transceiver |
| Dimensions |
